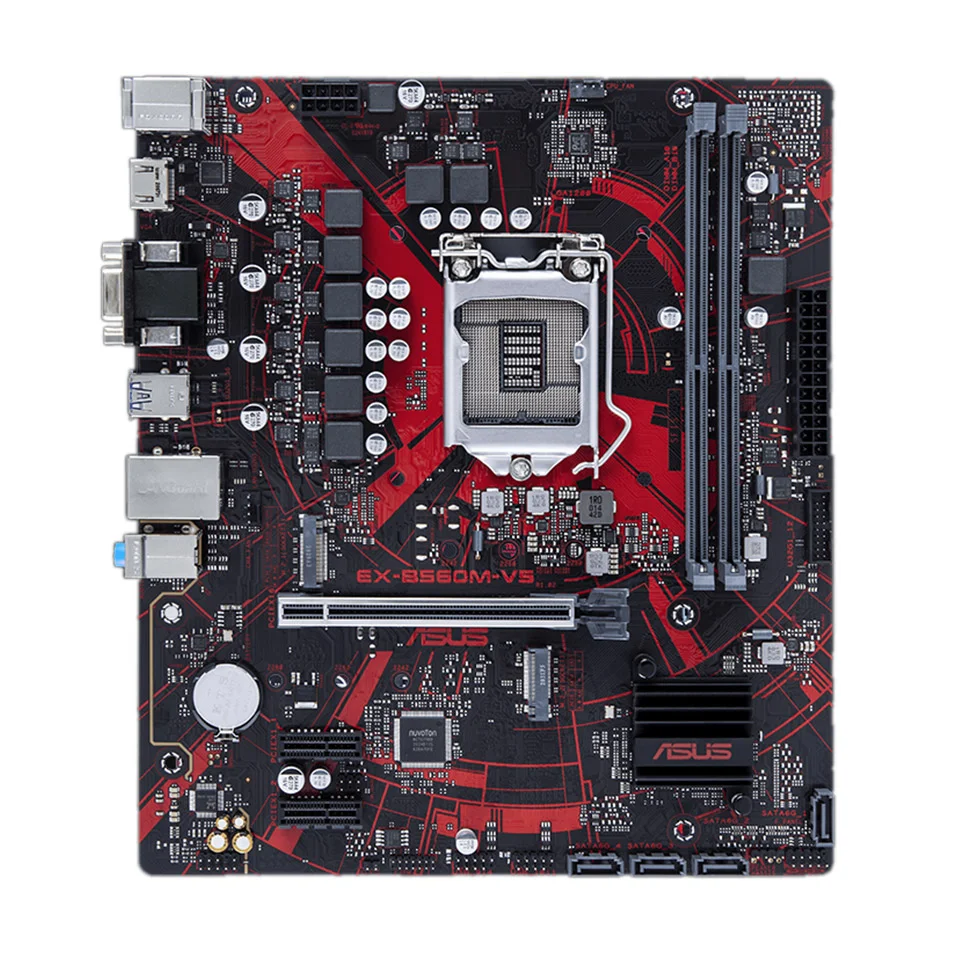

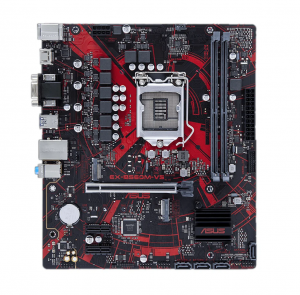

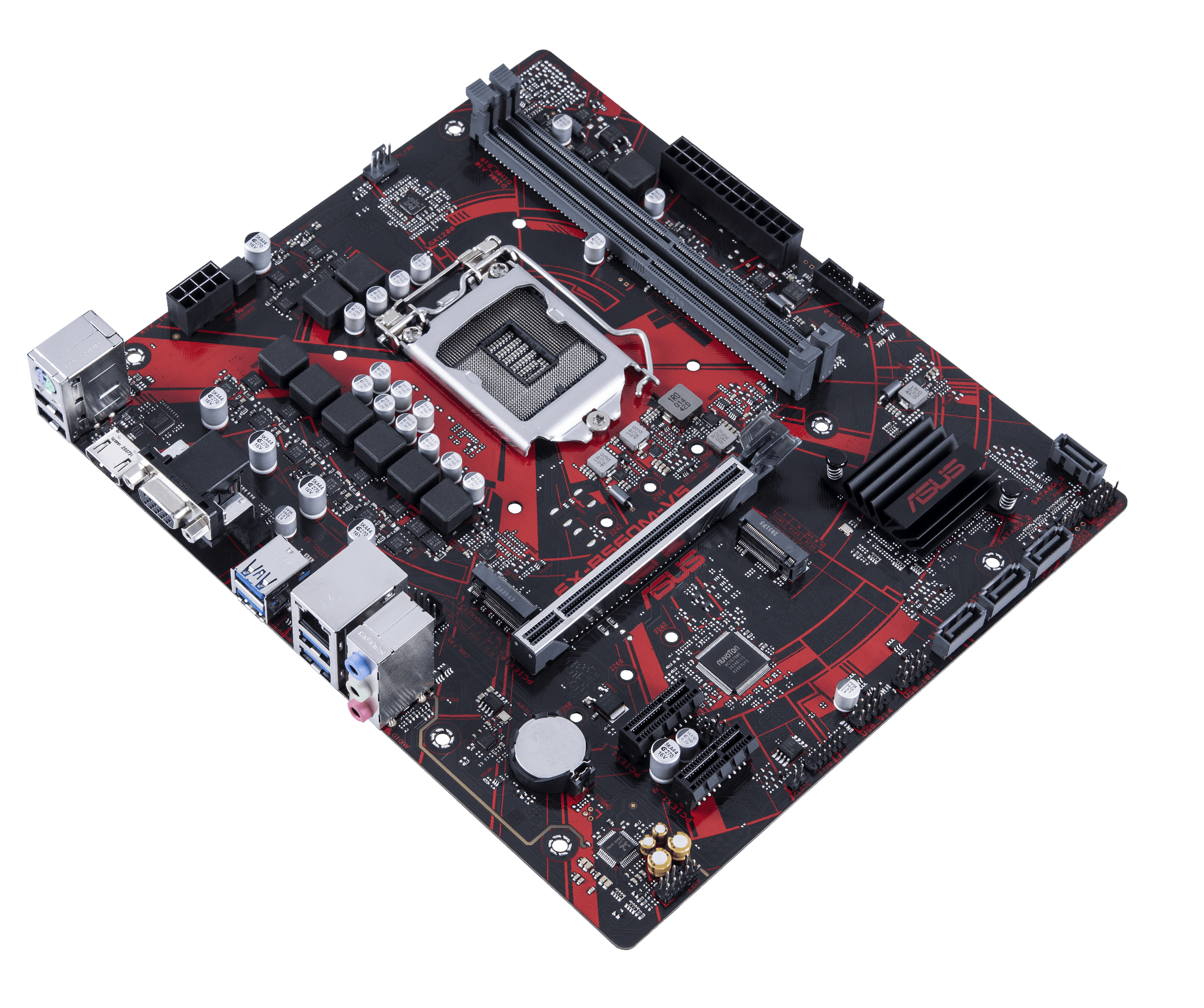

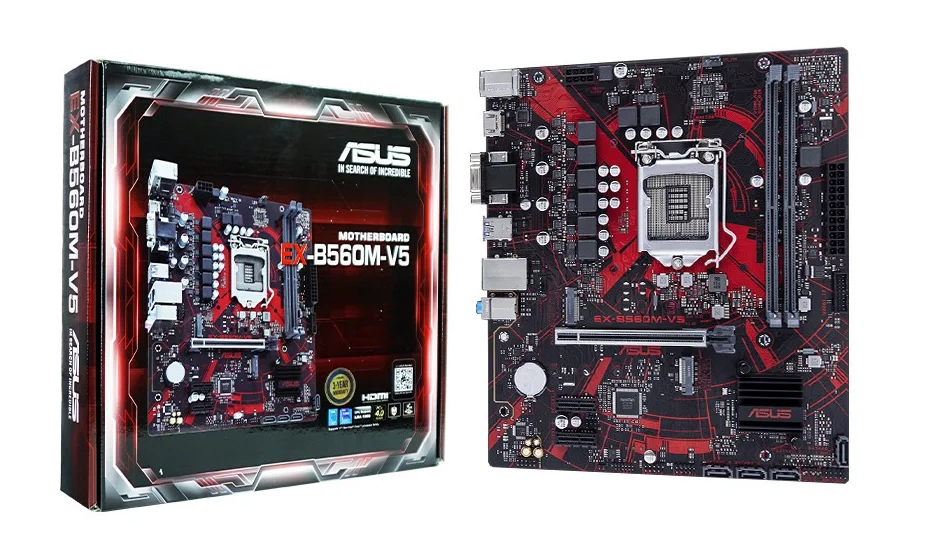

Mainboard ASUS EX-B560M-V5 (Intel B560, Socket 1200, m-ATX, 2 khe Ram DDR4)
1.990.000VNĐ 2.750.000VNĐ
Mã:
Thương hiệu: ASUS
Bảo hành: 36 tháng
Lượt xem: 3046
Tình trạng: Còn hàng
|
Sản phẩm |
|
|
Tên Hãng |
|
|
Model |
|
|
CPU hỗ trợ |
Hỗ trợ cho thế hệ thứ 10&11 Intel® Core Socket LGA1200 |
|
Chipset |
B560 |
|
RAM hỗ trợ |
2 x DDR4 DIMM Slots ( tối đa 64GB ) |
|
Khe cắm mở rộng |
1 x PCI Express 4.0/3.0 x16 Slot 1 x PCI Express 3.0 x1 Slot |
|
Ổ cứng hỗ trợ |
6 x SATA3 6.0 Gb/s Connectors |
|
Cổng kết nối (Internal) |
1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 2x M.2 slot (Key M) 4 x SATA 6Gb/s ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x Speaker header 1 x 10-1 pin System Panel header |
|
Cổng kết nối (Back Panel) |
4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x D-Sub port 1 x HDMITM port 3 x Audio jacks 1 x Realtek 1Gb Ethernet port 1 x PS/2 Keyboard/Mouse combo port |
|
LAN / Wireless |
1 x Realtek 1Gb Ethernet |
|
Kích cỡ |
Micro ATX Form Factor: 9.6 inch x 8.3 inch (24.4cm x 21.1cm) |
